RTLoop helps chip teams adopt AI without trusting it blindly. In our verification loop, a low-cost model writes RTL one module at a time, and simulation, structural checks and synthesis decide what passes. Failures go back to the model as raw tool errors, within a fixed call and cost budget; if a module still fails, it stops and an engineer decides.
We start every engagement with a pilot on one real block.
Replay of a real run log: a low-cost model writes the 13 work packages of a 5-stage RV32I pipeline; failures are fed back until every package passes. 20 calls, 934.5 seconds.
01How it works運作方式
Every work package runs the same cycle. The model only proposes; the verification tools decide. A passing revision is locked and becomes a read-only dependency for the next package. The loop is model-agnostic: the same gates judge every model, and a step beyond a low-cost model, such as a bus interface, can go to a stronger one under the same gates and budgets.
Ports, cycle-accurate tests and, where available, reference RTL that the tests must pass first.
design-check → PASS
Writes only its assigned modules and returns complete files in a single tool call.
submit_rtl_files()
Admission check, then compile, simulate and check structure: single driver, no latches.
iverilog · vvp · yosys
The passing revision is frozen. Dependent packages start, and integration packages assemble verified modules.
revisions/NNN
↺ NEEDS_REPAIR and STALLED go back to the model; when the budget is used up, the loop stops for an engineer.
When every package has passed, all checks run again on the exact final source before synthesis. The loop only guarantees that RTL passes your tests, so we test the tests too: first against reference RTL, then against seeded bugs (all 22 caught on the RV32I pipeline).
02Results實測結果
In every run in the table, one low-cost model wrote every module from an empty file. Our team prepared the interface specs, tests and decomposition plans beforehand; that preparation is where the expertise goes.
| Design | Modules | Passed | Cost / pass | Time / pass | Fmax | Area |
|---|---|---|---|---|---|---|
| gcd88-bit GCD engine | 2 | 8/8 | $0.0002–0.0006 | 26–63 s | 310–328 MHz | 1,640–1,724 µm² |
| RV32I single-cycleinteger-subset CPU | 7 | 10/10 | $0.0063 | ≈ 8 min | 115.1 MHz | 68,212 µm² |
| RV32I 5-stage pipelinesplit into stage modules | 13 | 10/10 | $0.0081 | ≈ 11 min | 177.9 MHz | 85,030 µm² |
| SHA-256 coresplit plan with stall restarts | 5 | 9/10* | $0.0063 | — | — | — |
| AES coreone architecture note added by an engineer (0/8 without it) | 6 | 8/10 | $0.0143 | ≈ 12 min | — | — |
Model-written RTL held up against our reference RTL. The split pipeline reached a median Fmax of 177.9 MHz against the reference's 183.3 MHz, with 85,030 vs 84,361 µm² of area. The single-cycle core beat its reference: 115.1 vs 105.2 MHz.
*SHA-256: latest round to synthesis (2026-09-28). Without stall restarts, the same plan scored 6/10, 10/10 and 6/10 in three rounds. RV32I is the base integer subset (FENCE, ECALL and CSR treated as no-ops), checked with our own testbenches rather than the official riscv-tests; memories sit outside the core. Fmax and area come from ORFS synthesis and OpenSTA before placement, with Fmax = 1000 / (clock period − worst setup slack); medians where several runs exist. Engineering estimates from September–October 2026, not signoff and not a formal model qualification.
Scope today: synthesizable Verilog-2005 with a single clock, simulated with Icarus Verilog and synthesized with Yosys and OpenROAD on SkyWater SKY130.
Why expertise matters
Same pipeline spec, same low-cost model. With the whole 5-stage RV32I core in one package, most runs failed. Split into stage modules with cycle-by-cycle tests, every run passed, at about a ninth of the cost.
What we changed
Physical design

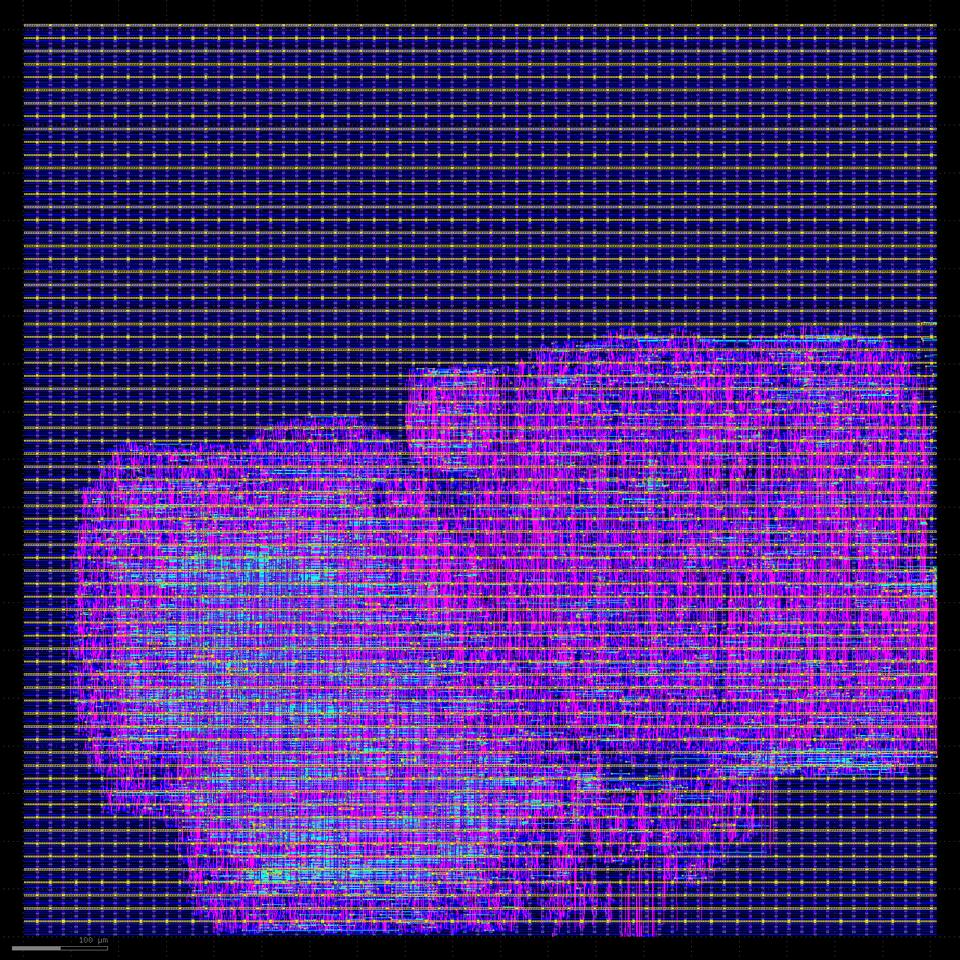

We have also taken three blocks with prepared physical profiles to GDS through a fixed, hash-locked SKY130 flow. These were earlier, human-led runs: SPI's RTL is a low-cost model's refactor of reference RTL. For AES-128 and SHA-256, a low-cost model wrote the arithmetic blocks and stronger models wrote the rest, including the AES core, both APB interfaces and SHA-256's compression, padding and stream blocks. RV32I and the other designs above stop at synthesis today.
Taken to GDS
AES-128 and SHA-256 at a 100 ns clock (10 MHz). Human-led runs, several models.
Required to pass
Plus 13 more conditions, 17 in all.
Digital-core layouts on the open SkyWater SKY130 PDK. They show the flow runs end to end; pad ring, packaging and tape-out signoff are out of scope.
03Services服務
Whether your own engineers will run AI-assisted design or you want a block delivered, we work the same way: measurable gates first, models second.
We review your design and verification flow, find the routine RTL work a model can safely take over, and build the gates, budgets and audit trail around it.
What we cover
Give us a block and its spec. We write the interface specs and tests, plan the decomposition, run it through the loop and deliver RTL that has passed every tool check.
What you receive
Each step ends with numbers you can check.
Understand your flow, tools, IP constraints and where engineering time actually goes.
Run one real block through the loop and measure pass rate, cost and time.
Connect the loop to your regressions, reviews and budgets.
Playbooks and training so your team can run it on its own.
04IP & security智慧財產與資安
Chip teams can't afford a leaked design. Only the minimum context for one module leaves your machines, and every request is logged.
Simulation, structural checks, synthesis and the physical flow run on your machines. Reference RTL, testbenches, netlists and layouts never leave.
A request carries one package's interface spec and plan notes, the RTL of its verified dependencies, its previous version, and tool feedback with the repair history. Nothing beyond that package.
Today, model calls go through OpenRouter to one pinned inference provider, with fallback routing off and data collection denied.
Each request and response is stored with the project for audit. API keys live only in the subprocess that calls the model, never in logs, reports or Git.
05Team團隊
RTLoop was founded in Taiwan on June 5, 2026. Our 10 members include graduate students in IC design and AI from the Department of Electrical Engineering and the Department of Computer Science and Information Engineering at National Taiwan University of Science and Technology (NTUST). We track AI-for-EDA research, test new ideas on our own benchmarks before relying on them, and hold our own work to the rule we bring to clients: if a tool didn't verify it, it doesn't count.
